Portable Stage Systems
Modular Portable Stage Systems

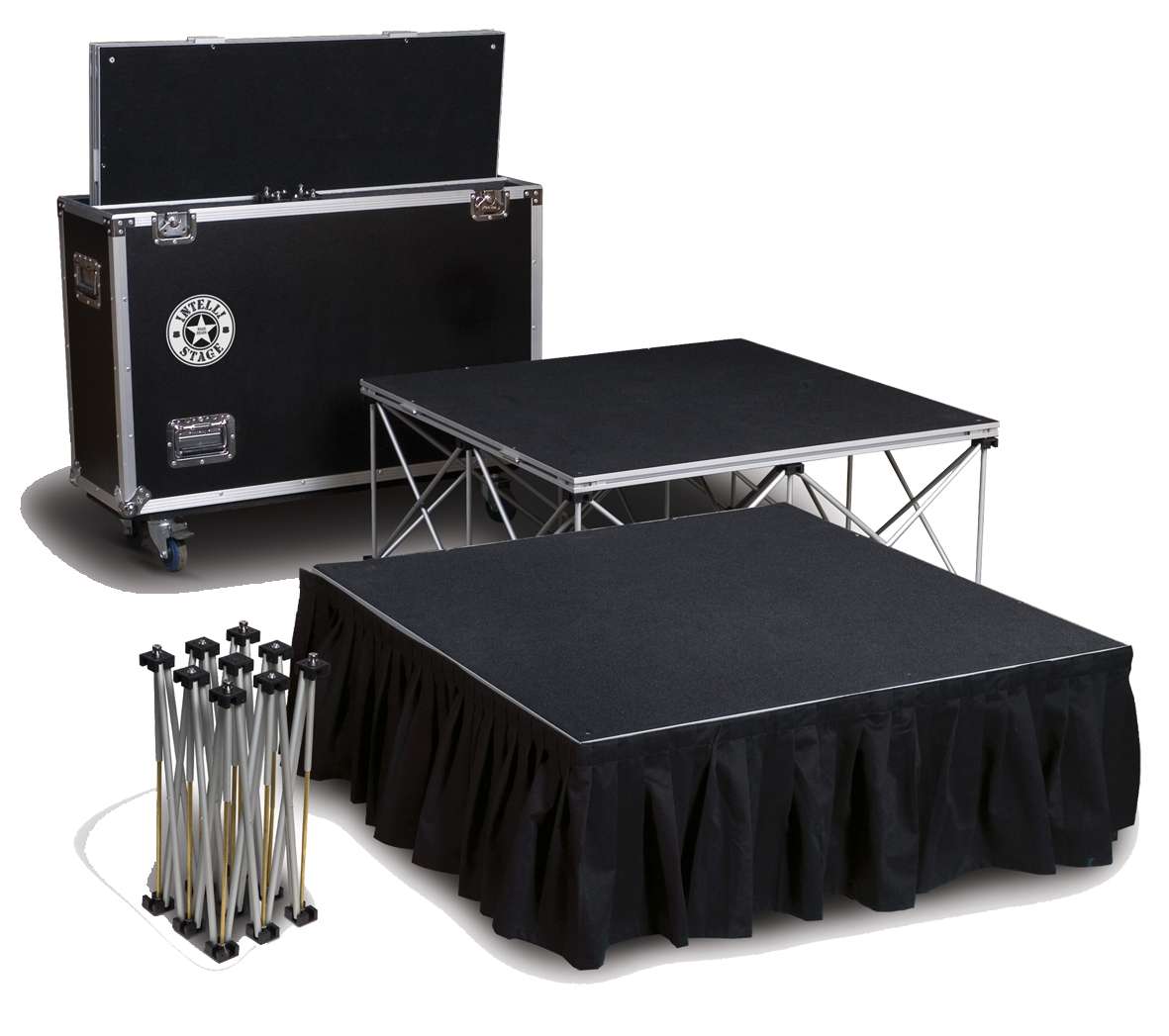

One of the most versatile, strong and lightweight portable stage systems on the market today, Road Ready’s Intellistage stage systems consist of modular, lightweight platforms and collapsible risers that can be combined to create customized stages in various heights and configurations.
IntelliStage portable stage systems offer these unique features:
– Lightweight 13kg 1sqm Platforms can be carried and assembled by 1 person
– 1sqm Platforms fit in most cars and offer easy handling & storage
– Choice of 1m x 1m or 2m x 1m stage panels and matching legs
– Modular system allows you to add or replace individual pieces as needed
– Full line of accessories, including storage cases, steps, skirts and ramps
– Full 2-Year Warranty on all stages
Platforms are available in a heavy duty charcoal grey carpet finish or black textured (non-slip) Industrial finish.
Stage platforms lock together using an integrated platform interlocking system.
We offer a large range of transport and storage systems including protective cases, trolleys, caster boards and accessory cases.
Platforms and risers are so compact that they can store in a 1sqm footprint!
Intellistage platforms are available in several shapes and sizes. Featuring multiple layer sandwich construction (9mm high-density plywood/7.5 mm honeycomb grid / 4mm high-density plywood) with an aluminum profile on all sides, each platform can supports up to 757 kg. / 1 sq. m. and 157 lbs./sq. Ft (Expo certificate for 757 KGS/sq. Meter). Platforms are available in a grey carpet finish, black textured industrial finish or rugged black Tuffcoat finish and lock together using an integrated platform interlocking system.
- Weight Capacity: 757 kg. / 1 sq. m. and 157 lbs. / 1 sq. ft. (Expo certificate for 757 kg / 1 sq. m)
- Sizes (Euro): 2X1m, 1X1m & 1X0.5m, 1m isosceles and 90 degree triangles triangles & quarter rounds and folding platforms, 1m long step platforms
Our unique accordion-style folding stage risers definitely up-stage the competition! Deceptively lightweight, compact and strong, risers lock securely into our stage platforms via special platform locking screws. To top it off, riser height can be easily increased up to 64″ or 160cm high using our option ISREK riser coupler (found in the accessory section of this site)(*for safety never couple more than 2 risers). There are risers available to compliment all our different stage platform shapes (square, triangle, quarter round, step) and they are available in 20cm, 30cm, 40cm, 60cm and 80cm (8″ , 16″ , 24″ and 32″) heights.
- Brushed aluminum finish
- Sizes (U.S.): 8″, 16″, 24″ & 32″
- Sizes (Euro): 20cm, 30cm, 40cm, 60cm & 80cm
What sizes platforms are available?
IntelliStage platforms are available in 3’x3′ and 4’x4′ in the US. IntelliStage platforms are available in 1×1 Mtr and 2×1 Mtr internationally. Steps, triangles and quarter round platforms are also available.
What finishes are available?
Platforms are available in a grey carpet finish, black textured industrial finish or rugged black Tuffcoat finish.
How much weight can an IntelliStage platform support?
IntelliStage platforms are capable of supporting 757 kg. / 1 sq. m. and 157 lbs. / 1 sq. ft. (Expo certificate for 757 kg / 1 sq. m). The total weight load a platform can support ultimately depends on the platforms overall size.
How tall are IntelliStage risers and what is the maximum safe stage height setup?
IntelliStage risers are offered in 8″, 16″, 24″ and 32″ for US systems. IntelliStage risers are offered in 20cm, 30cm, 40cm, 60cm and 80cm internationally. IntelliStage risers can be double stacked to increase the stage height through the use of our ISREK hardware. The max height that an IntelliStage system can be setup is 64″ in the US and 160cm internationally.
Are riser heights adjustable?
Riser heights are not adjustable, however, risers are interchangeable meaning a single platform could be placed on either an 8″ riser or a 32″ riser. Risers can also be stacked on top of each other to increase their height (up to two risers) through the use of ISREK hardware.
Will steps be required for my stage configuration and is any additional hardware required?
We recommend the use of steps on stages taller than 8″ or 20cm. Each steps also requires 1 package of ISSJ hardware to properly secure it to its adjoining step or stage.
How are platforms locked or secured together?
Each IntelliStage platform has an integrated locking mechanism that secures all platforms together. The mechanism is operated through the use of an allen wrench hex key that is provided with each platform. For storage the hex key stores away into the aluminum stage profile.
How are platforms locked or secured to risers?
IntelliStage platforms lock to risers at platform corners through the use of an allen wrench hex key that is provided with each platform.
How much room does an IntelliStage system take up when stored?
In most cases an IntelliStage System never takes up a larger footprint than a single platform. All components can be stacked and stored neatly for minimal storage space required.
